Alignment and Crosstalk
Some preliminary results
ACDC3 HP4 with straight tracks

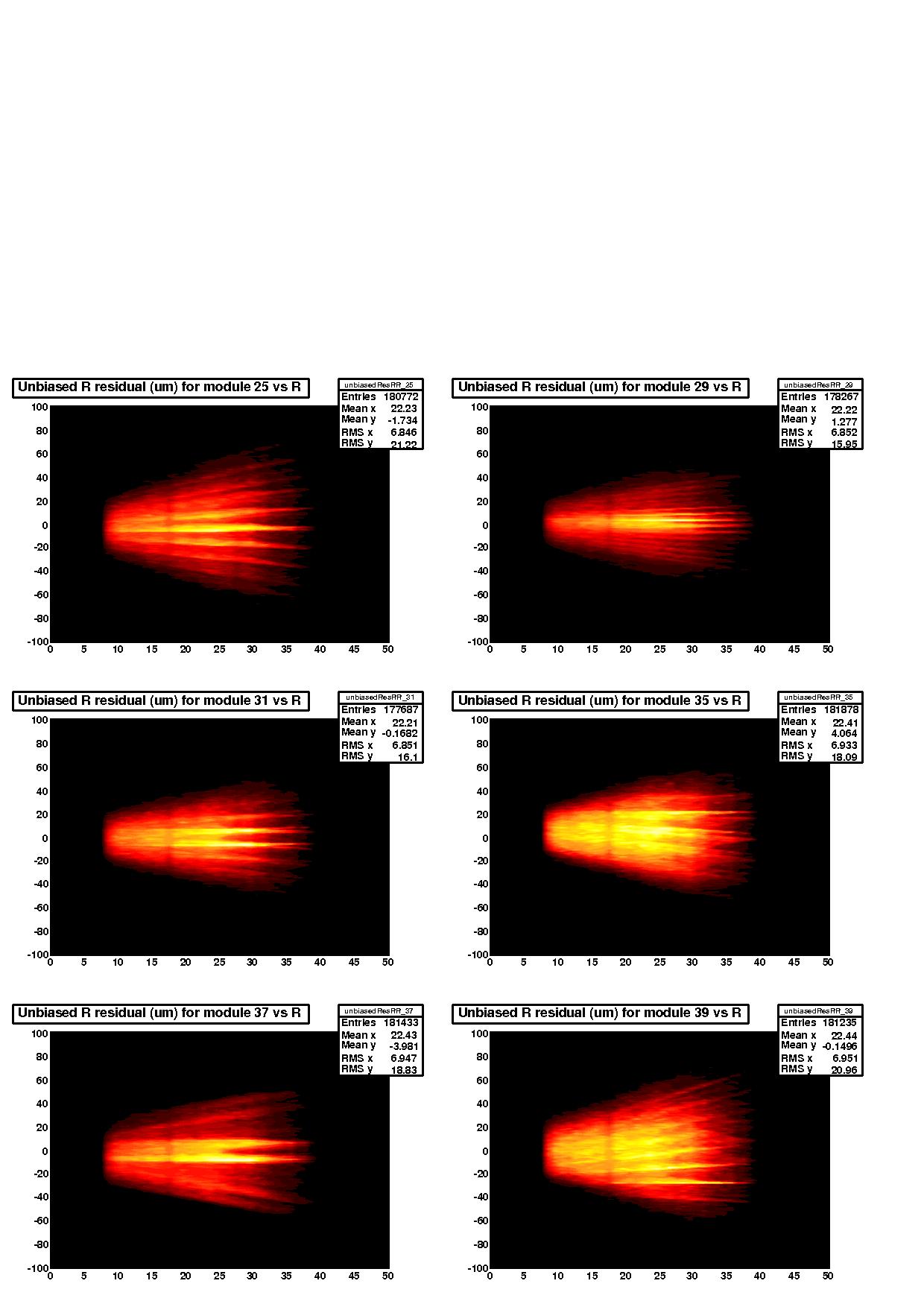

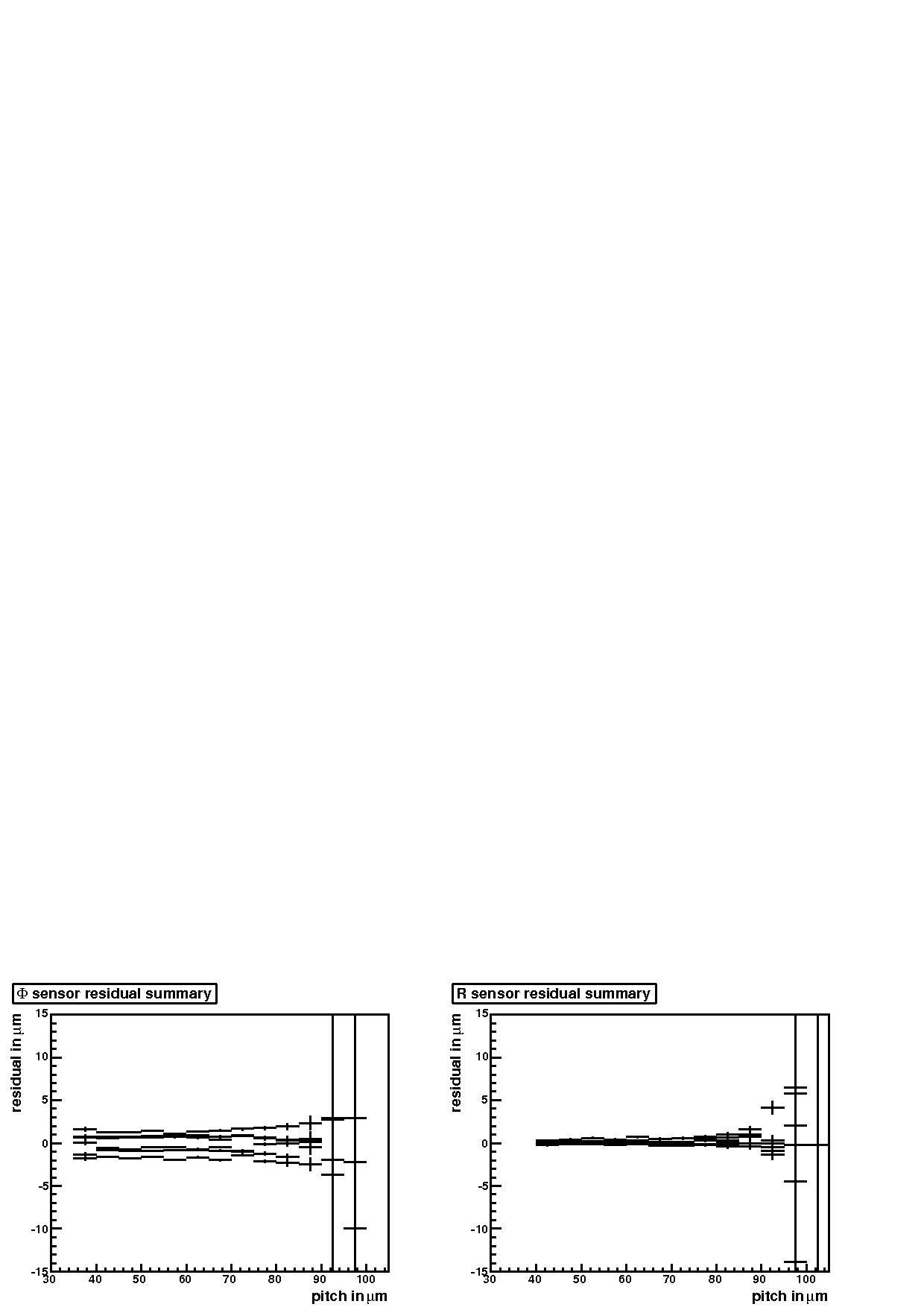

1. HP4: R residuals as a function of the radius (MC sample).
|

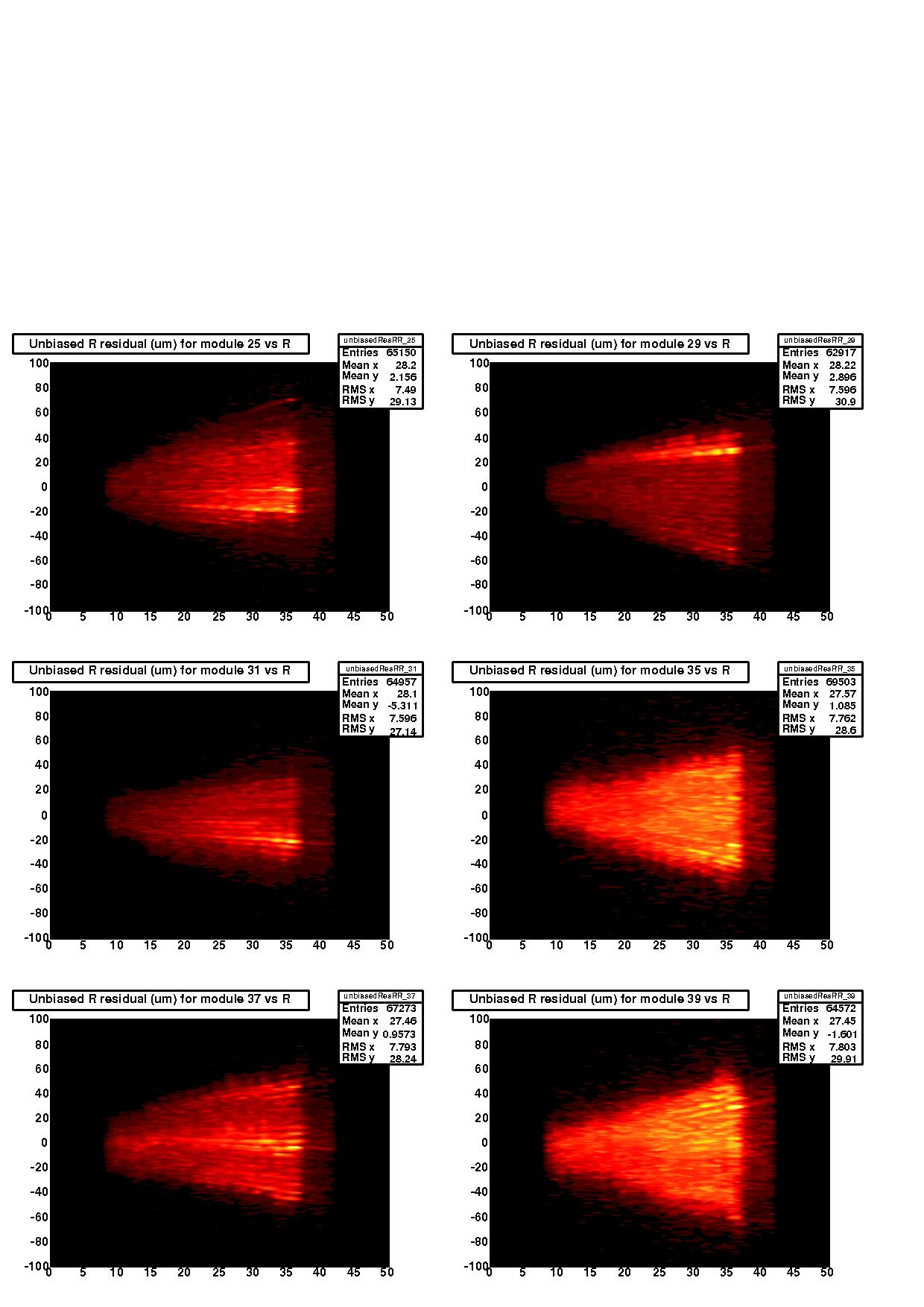

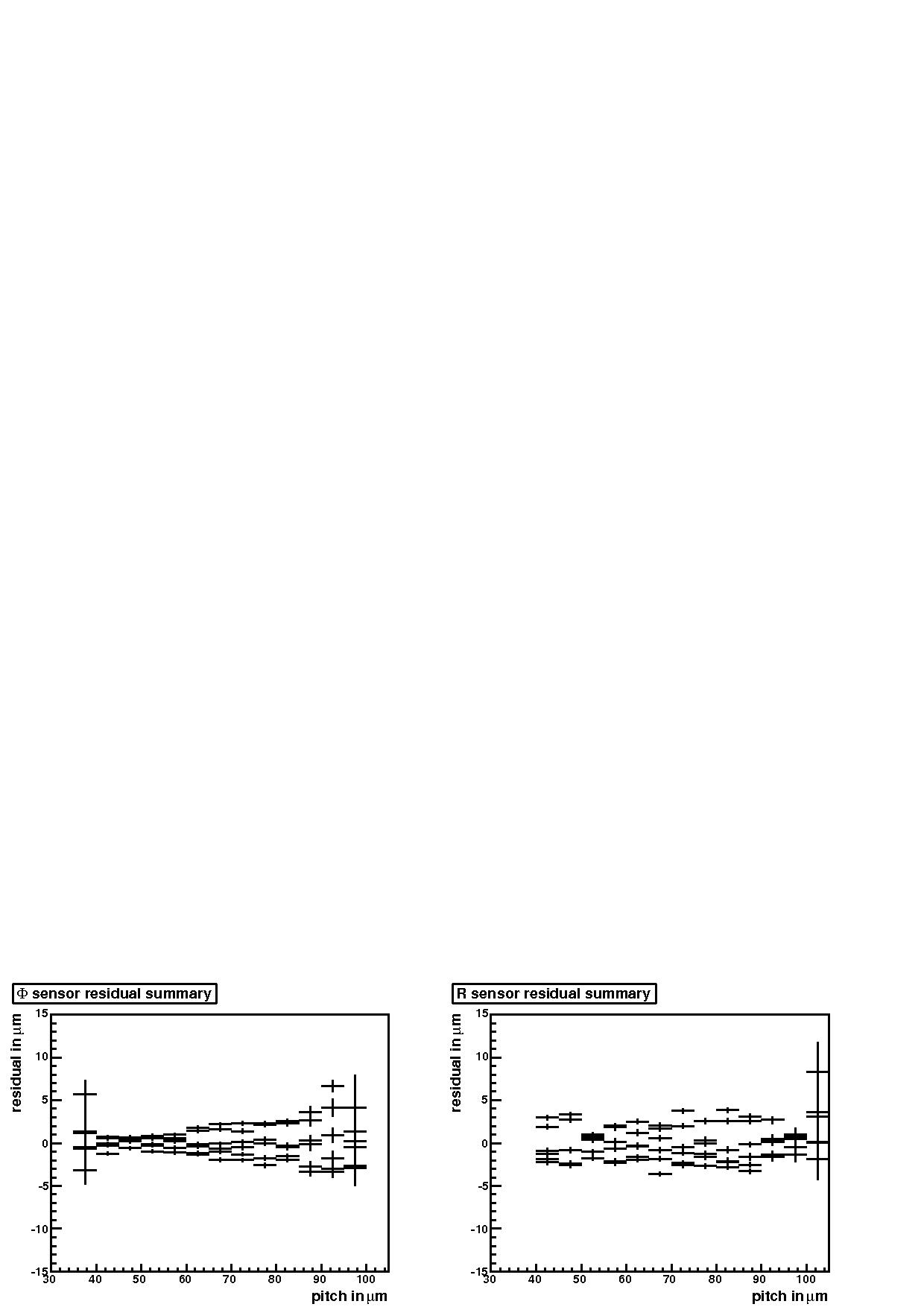

2. HP4: R residuals as a function of the radius (DATA).
|

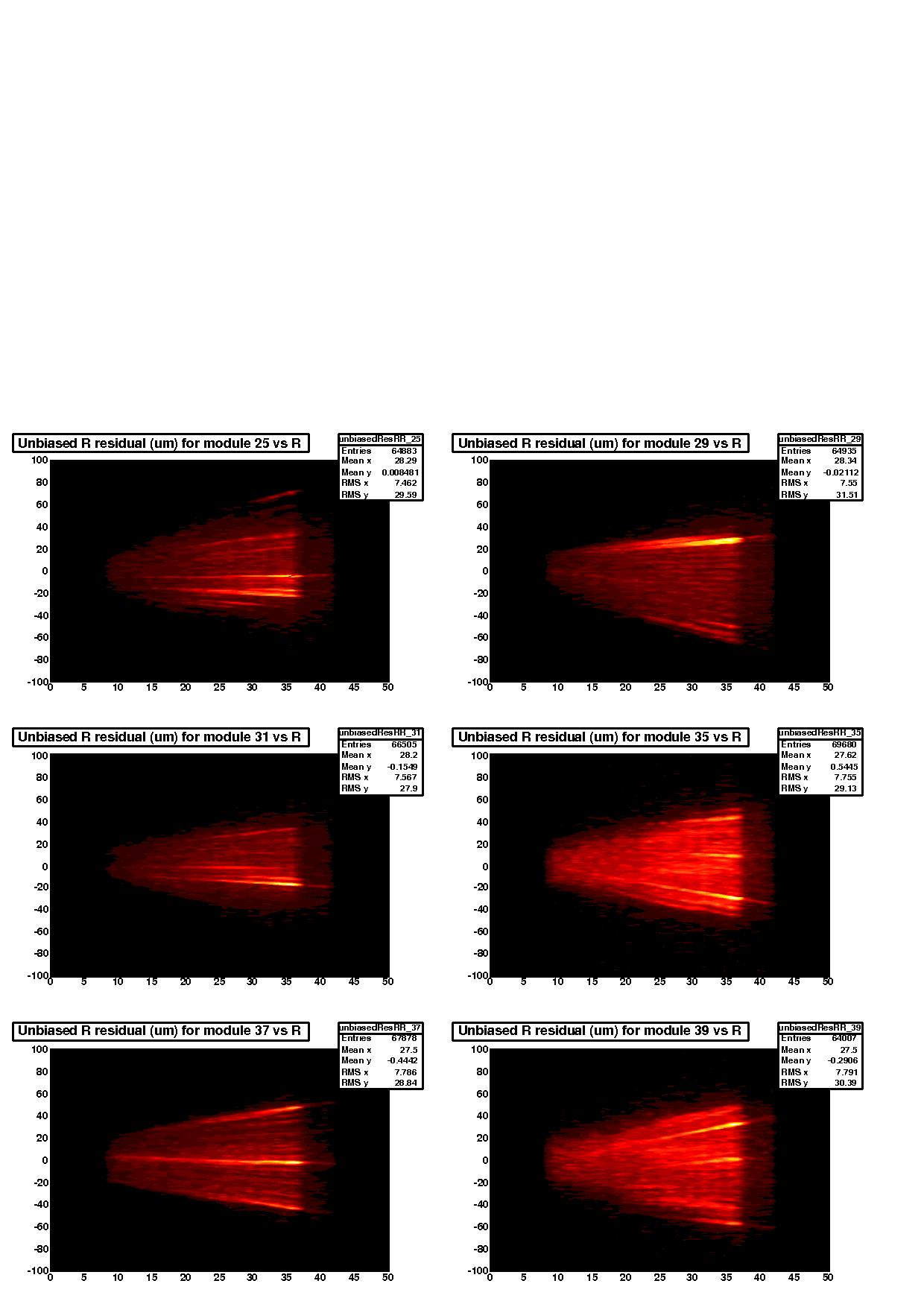

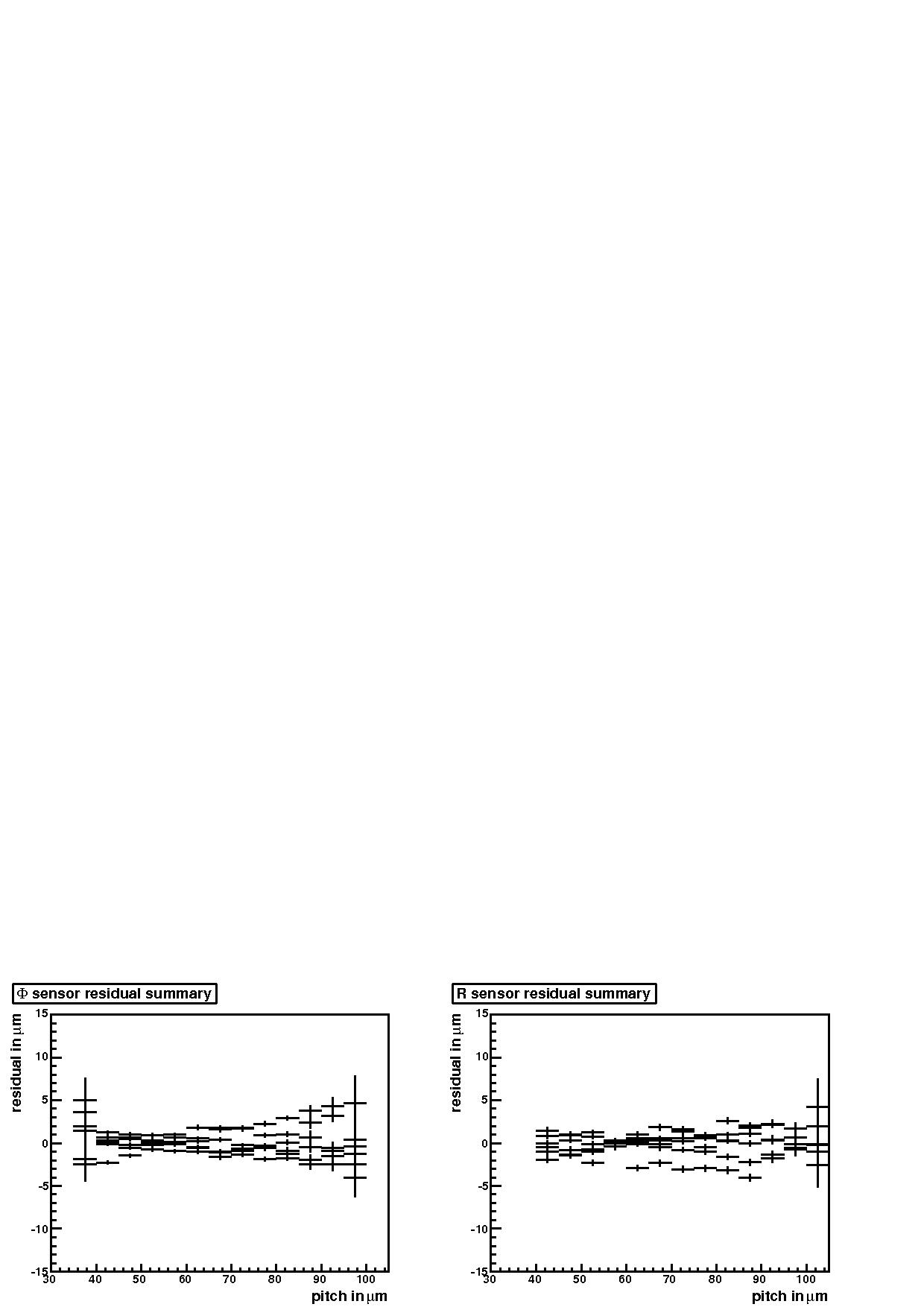

3. HP4: R residuals as a function of the radius (DATA corrected from crosstalk).
|
4. HP4: R residuals as a function of the radius (MC sample).
|
5. HP4: R residuals as a function of the radius (DATA).
|
6. HP4: R residuals as a function of the radius (DATA corrected from crosstalk).
|
ACDC3 HP4 with inner target

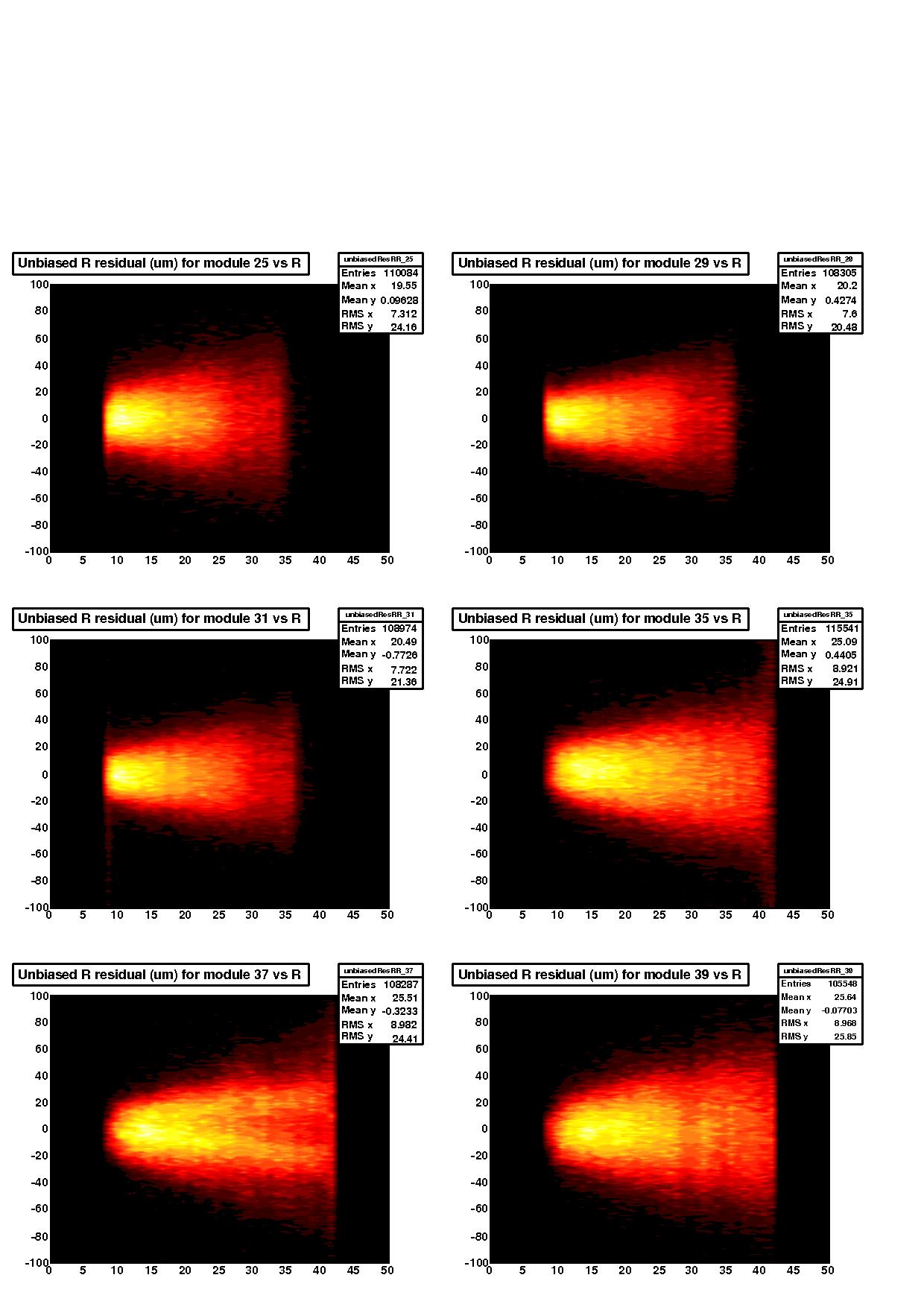

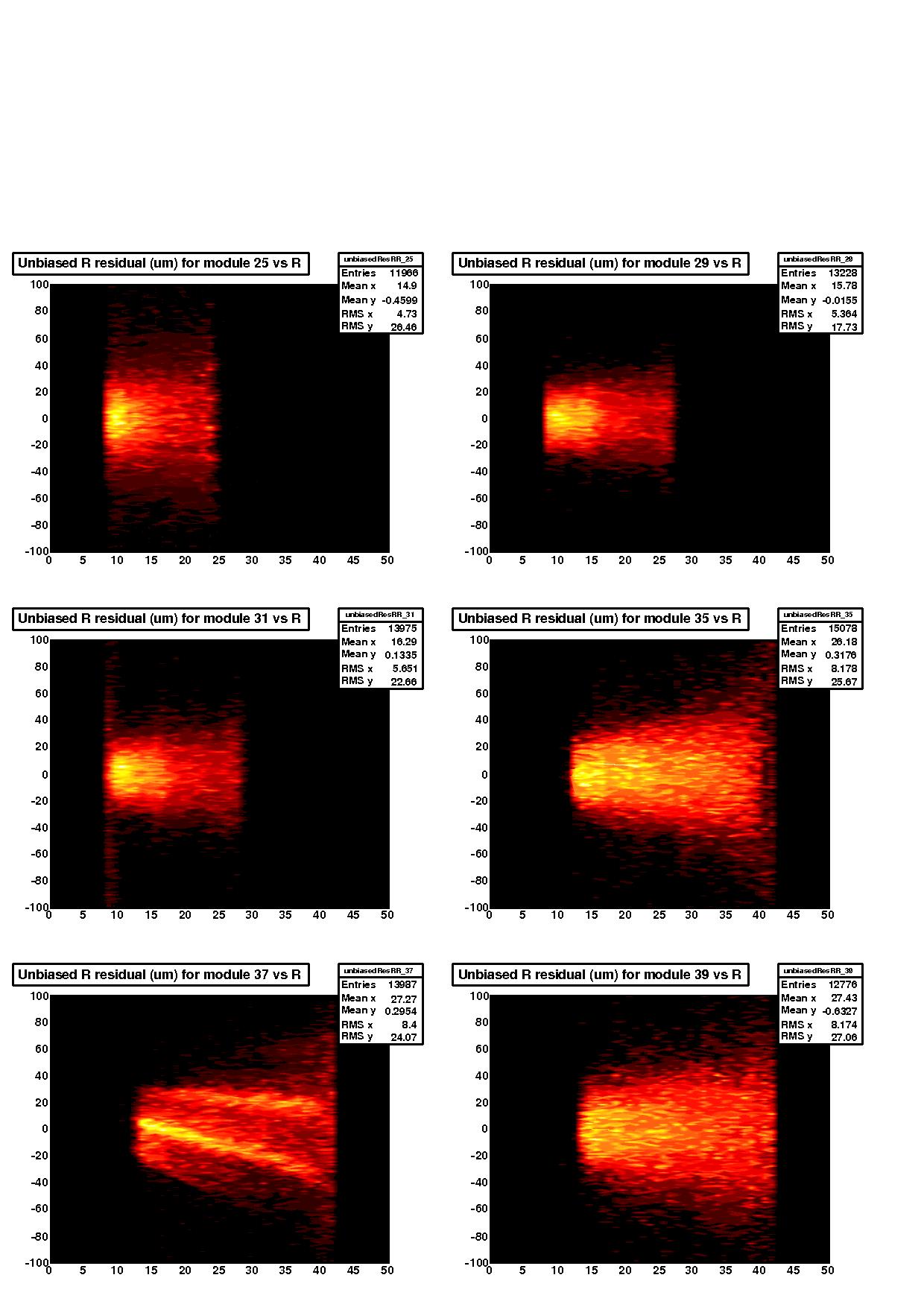

7. HP4: R residuals as a function of the radius (MC sample).
|
8. HP4: R residuals as a function of the radius (DATA).
|
9. HP4: R residuals as a function of the radius (DATA corrected from crosstalk).
|

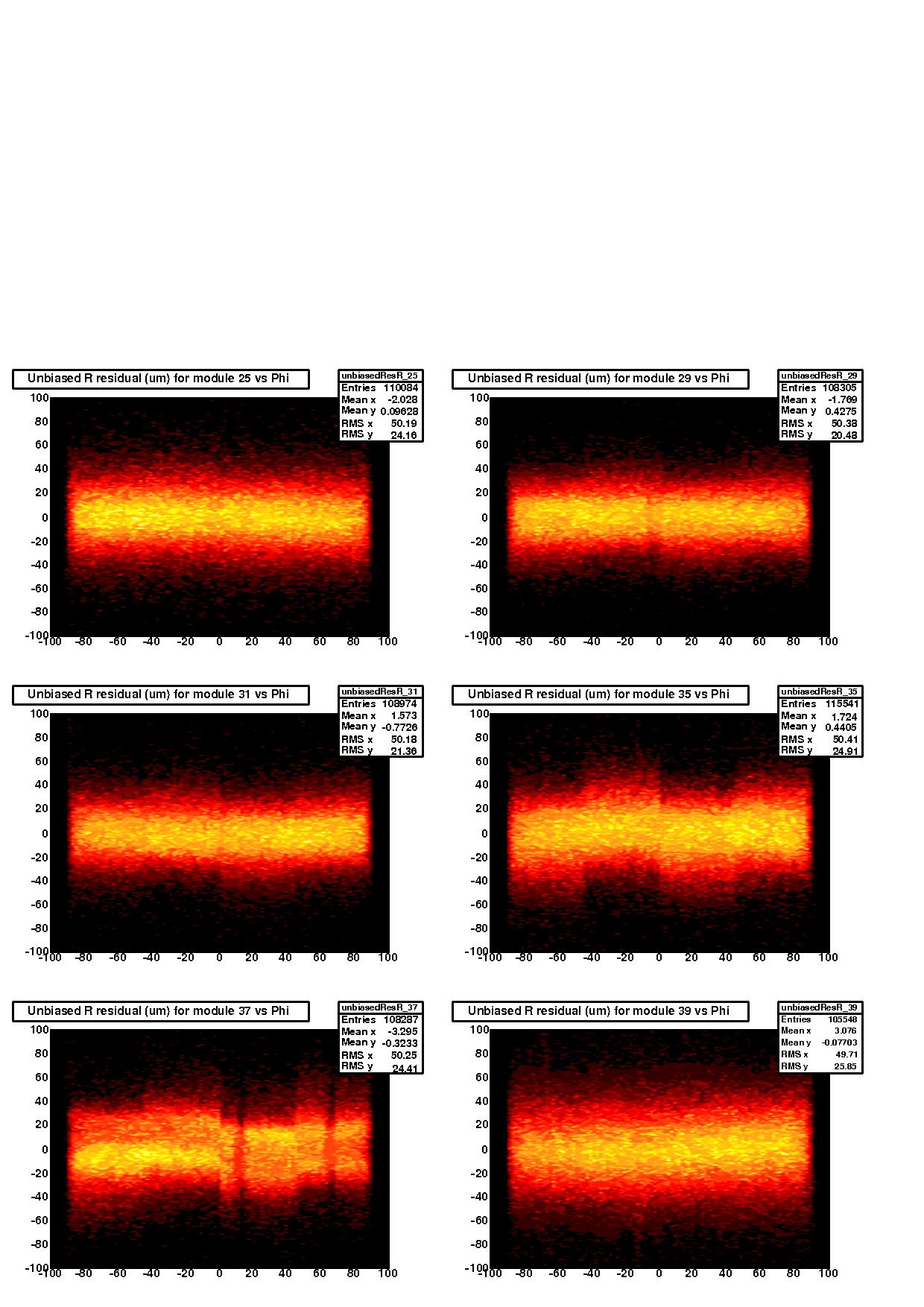

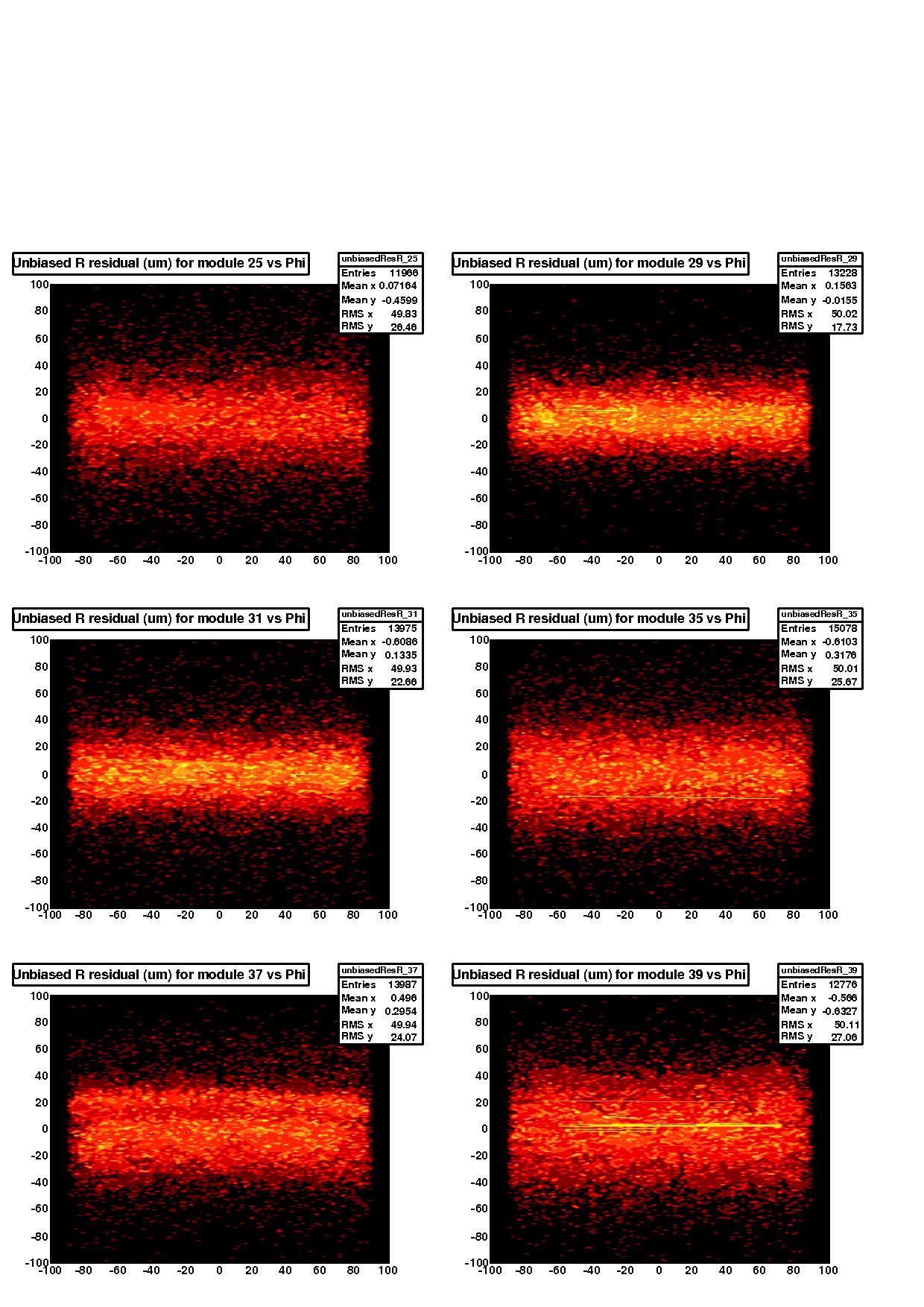

10. HP4: R residuals as a function of the phi angle (MC sample).
|
11. HP4: R residuals as a function of the phi angle (DATA).
|

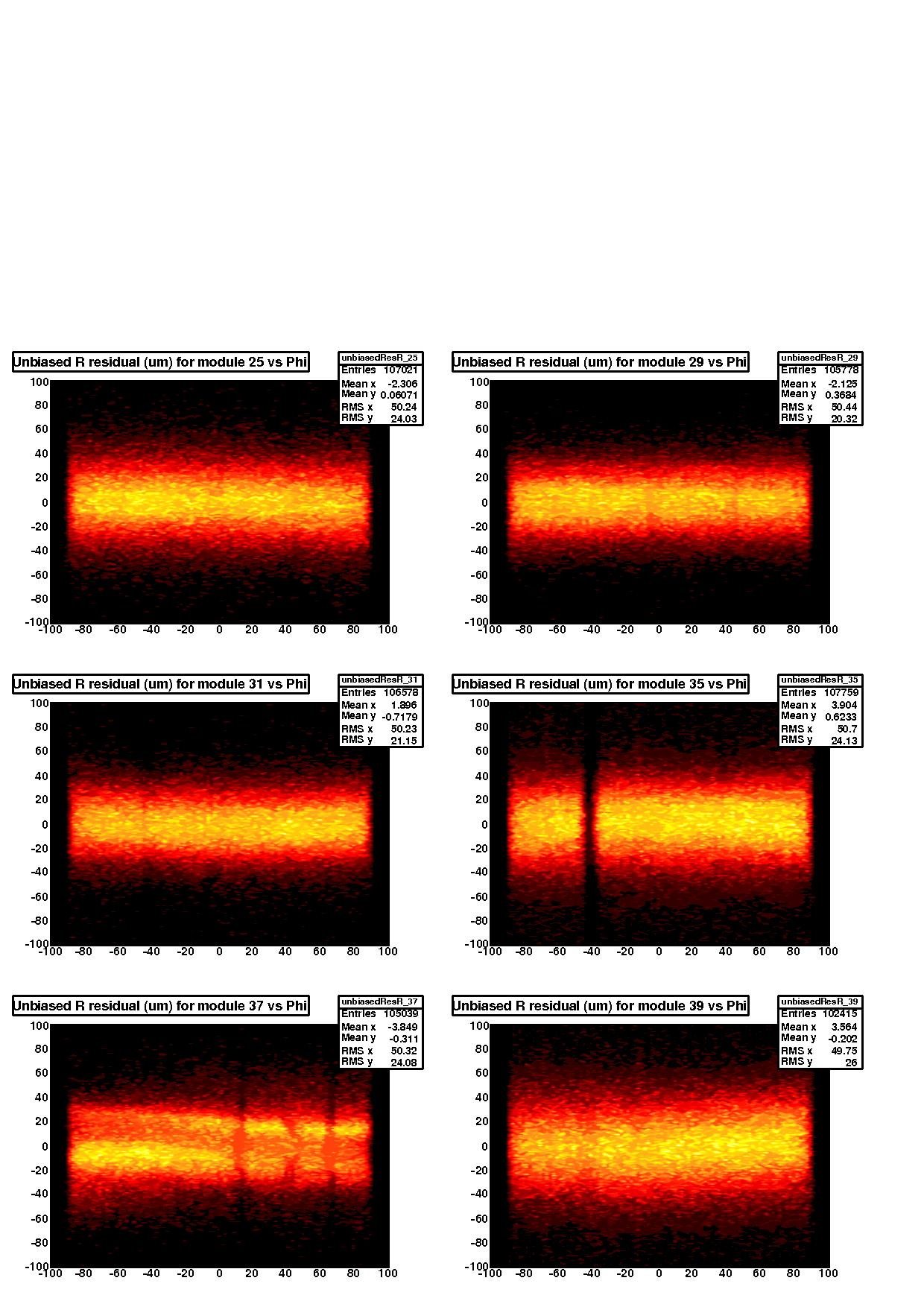

12. HP4: R residuals as a function of the phi angle (DATA corrected from crosstalk).
|

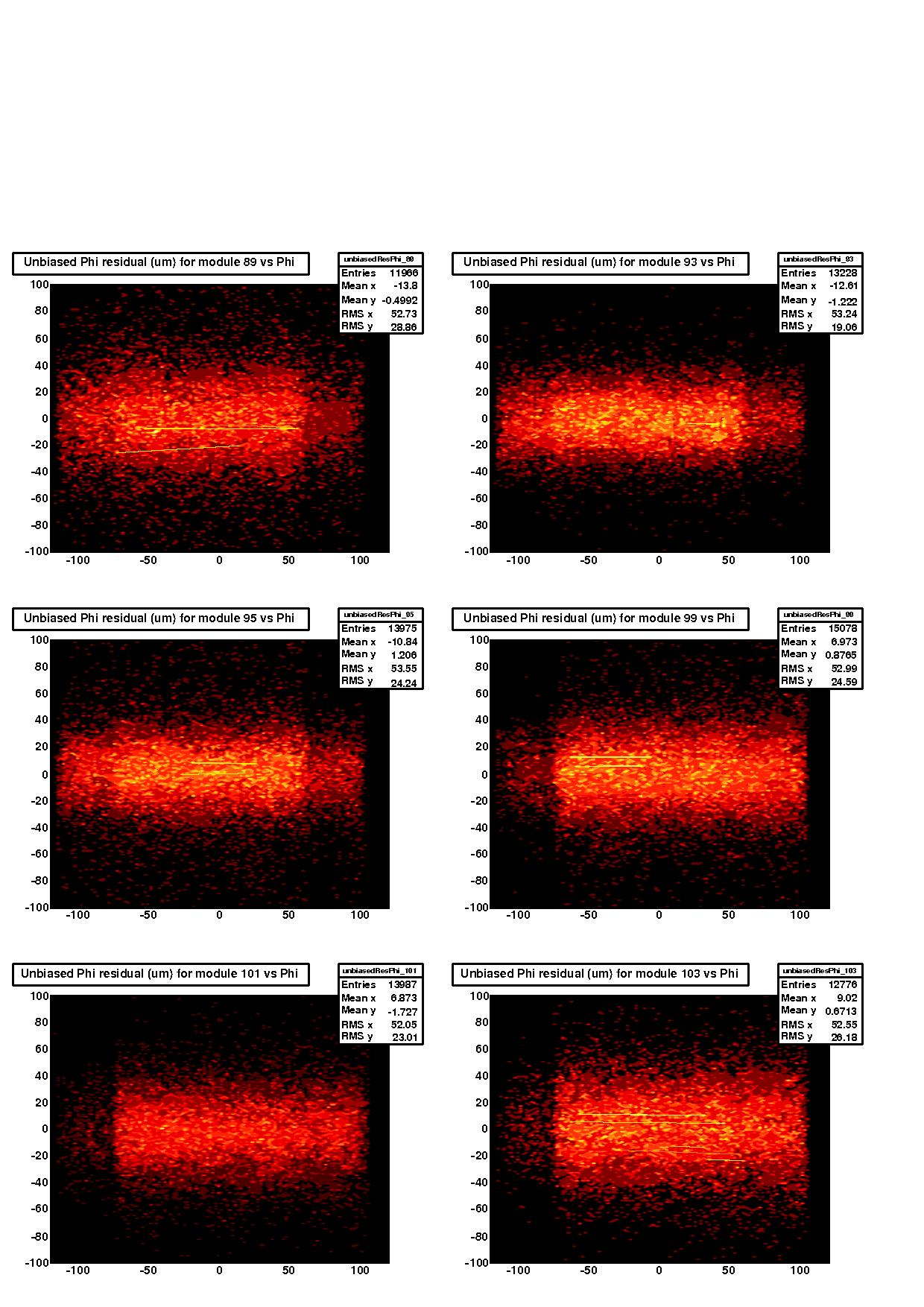

13. HP4: PHI residuals as a function of the phi angle (MC sample).
|

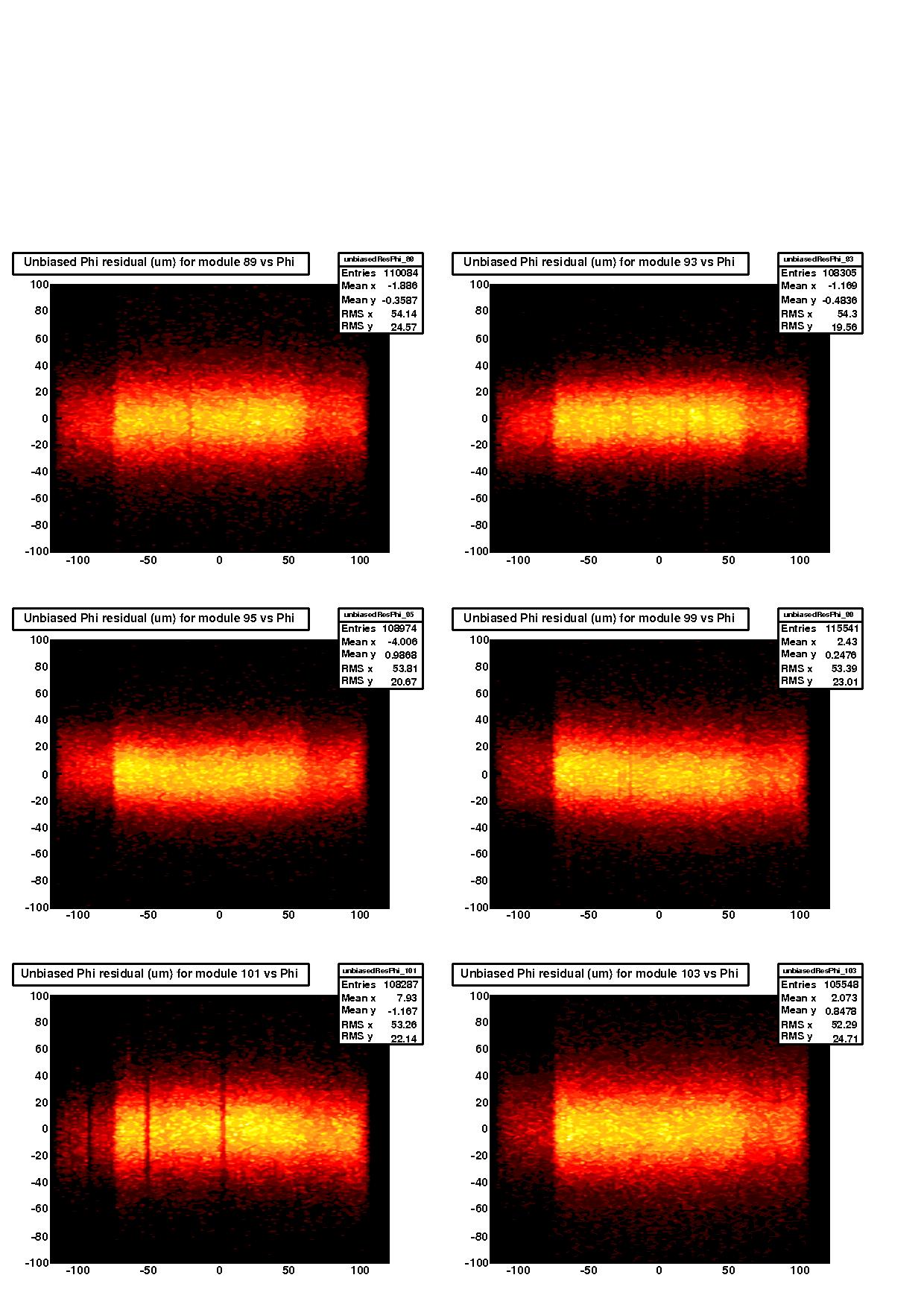

14. HP4: PHI residuals as a function of the phi angle (DATA).
|

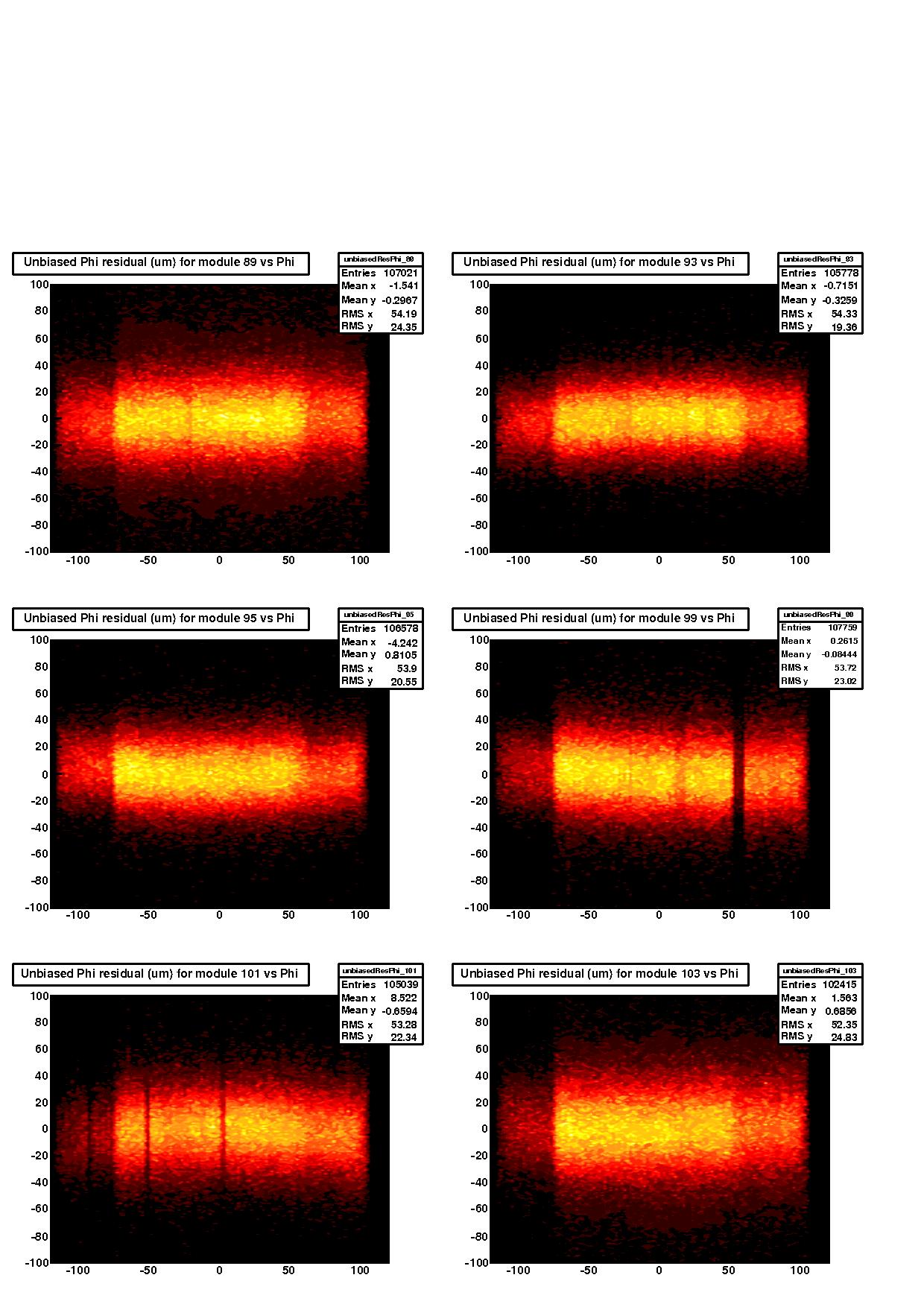

15. HP4: PHI residuals as a function of the phi angle (DATA corrected from crosstalk).
|
