Running MC Validation

To use for example version v1.2.2 of the NA62FW from CVMFS, on a CC7 machine, we set the environment with

source /cvmfs/na62.cern.ch/offline/NA62FW/prod/v1.2.2/NA62Analysis/scripts/env.sh

Validation Step 1 is run with a list of reconstructed files as input (download the linked files first)

PostProcessing -l filelist.txt -e1 -o Step1.root --config PostProcessing.conf

and Step 2 takes as input the root file produced at Step 1:

PostProcessing -i Step1.root -e1 --histo

This will produce a lot of files, something like this

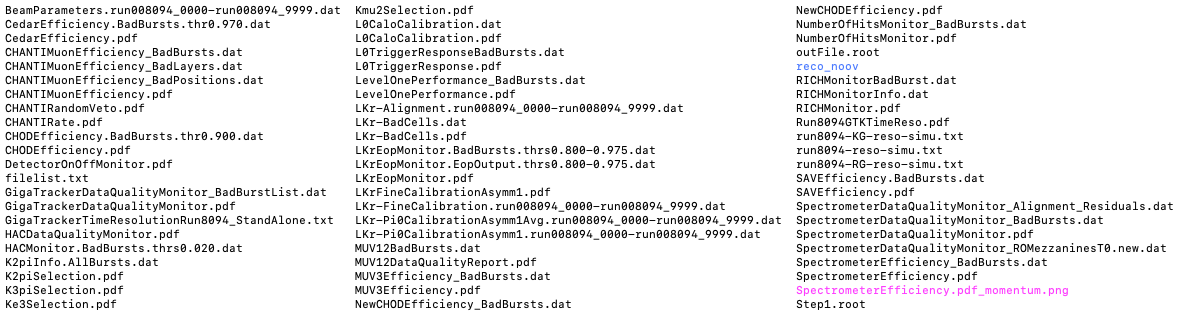

MC Validation Outputs

The plots produced by the example above are the default set, however, the list of analysers and the plots produced are customisable.
